Search antenna (500 MHz-12 GHz)

Submit request

Log periodic antenna, made on the printed circuit board for usage in manual mode (in the frame with handle) or mobile-stationary (in the frame with support or additional mounting) for carrying out searching.

Specifications

Frequency range	500 MHz-12 GHz
Shock-wave drag	50 ohm
Directional diagram	forward
Gain ration:
on a frequency of 2 GHz	3 dB
нon a frequency of 6 GHz	5 dB
on a frequency of 10 GHz	4 dB
Standing-wave ratio	No more 2.4
Connector type	SMA
Dimensions	31020015 mm

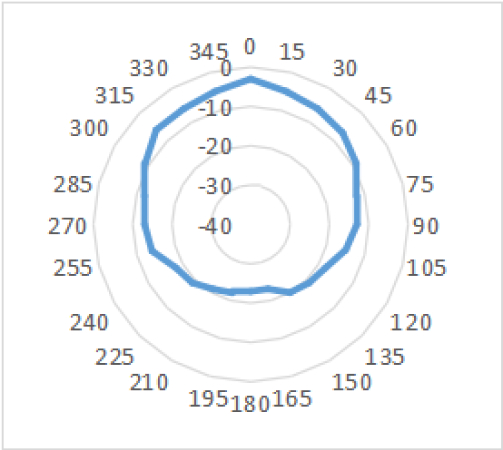

Horizontal directional pattern оn a frequency of 2 GHz
