Microwave antenna (6 GHz-15 GHz)

Submit request

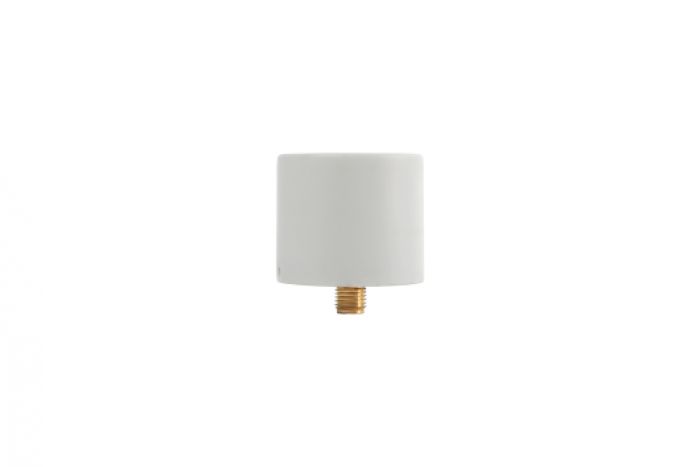

Microwave antenna (6 GHz-15 GHz) is designed as a receiving device of the electromagnetic waves in range of 6 GHz-15 GHz. The antenna is like a monoconical radiator, located above the metal base and has a circular pattern. The body frame is made of fiberglass, covered by grey radiotransparent dye.

Specifications

Frequency range	6 GHz-15 GHz
Shock-wave drag	50 ohm
Directional diagram	Circular pattern
Gain ration:
on a frequency of 8 GHz	1.2 dB
on a frequency of 12 GHz	2.6 dB
on a frequency of 15 GHz	3.8 dB
Standing-wave ratio	No more 1.6
Connector type	SMA
Dimensions	303030 mm
