HF Antenna (30 MHz-6 GHz)

Submit request

HF Antenna (30 MHz-6 GHz) is designed as a receiving device of the electromagnetic waves in range of 30 MHz-6 GHz. The antenna is like a monoconical radiator, located above the metal base. This kind of antenna is an analogue of the biconical and disconic antennae by its ultra-wideband characters, but it has the less diameter that is a good advantage.

Specifications

Frequency range	30 MHz-6 GHz
Shock-wave drag	50 ohm

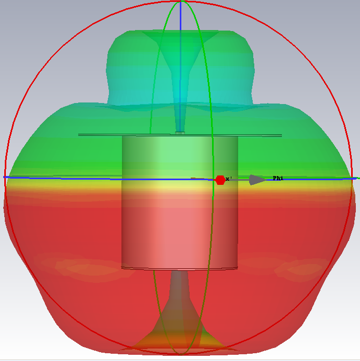

Directional diagram	Circular pattern
Gain ration:
On a frequency of 1000 MHz	3.3 dB
On a frequency of 3000 MHz	5.5 dB
On a frequency of 6000 MHz	5.8 dB
Standing-wave ratio	No more 1.6
Connector type	N-type
Dimensions	250250170 mm
