Radiosignal radar of Unmanned aerial vehicle (EXPERIMENTAL COMPLEX!)

Submit request

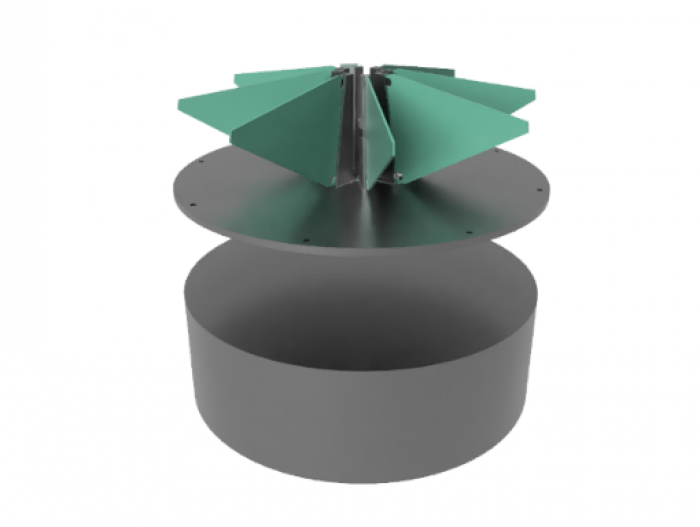

Radiosignal radar of UAV is an antenna radar, consisting of eight log periodic antennae, connected through commutator to the complex, built on the base of radio receiving device «Granit-SDR-15/21». The complex alternately scans the selected frequency ranges on each of antennae and displays the circular pattern of the signal level by which the operator can determine the radiation direction.

Specifications

Frequency range	2 – 6 GHz (it is possible to use the other antennae with the operating range 500 MHz – 12 GHz)
Quantity of antennae	8
Antenna type	og periodic
Dimensions	27627698 mm
